ID3RSNet：单通道EEG跨被试疲劳检测可解释网络

ID3RSNet：单通道EEG跨被试疲劳检测可解释网络（Frontiers in Neuroscience 2025）

论文信息：

核心创新

问题定义：

  1. 多通道EEG设备复杂、成本高、佩戴不便
  2. 单通道EEG信号非平稳、个体差异大
  3. 深度学习模型”黑箱”问题，缺乏可解释性

核心方法：

  1. 残差收缩网络（RSBU）：自适应特征重标定 + 软阈值去噪
  2. 权重冻结全连接层：抑制神经元负面影响
  3. ECAM可解释方法：可视化EEG频段激活模式

性能： 跨被试LOSOCV准确率 > 90%，同时提供神经生理学可解释证据

1. 问题背景

1.1 疲劳检测方法对比

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
class DrowsinessDetectionMethods:
    """
    疲劳检测方法分类
    """

    METHODS = {
        "行为检测": {
            "数据源": ["面部表情", "眼睛状态", "嘴部动作"],
            "优势": ["非接触", "成本低"],
            "劣势": ["受光照影响", "依赖头部姿态"]
        },
        "车辆行为": {
            "数据源": ["方向盘角度", "车道偏离", "速度变化"],
            "优势": ["已有传感器", "无需额外设备"],
            "劣势": ["个体差异大", "延迟高"]
        },
        "生理信号": {
            "数据源": ["EEG", "ECG", "EOG", "EMG"],
            "优势": ["直接反映状态", "实时性强"],
            "劣势": ["设备复杂", "佩戴不便"]
        }
    }

    @staticmethod
    def why_eeg():
        """
        为什么EEG是疲劳检测金标准

        疲劳与大脑活动直接相关
        """
        return {
            "原因": "疲劳本质上是大脑活动状态改变",
            "优势": [
                "直接测量中枢神经系统",
                "毫秒级时间分辨率",
                "可检测早期疲劳信号"
            ],
            "挑战": [
                "信号非平稳",
                "个体差异大",
                "多通道设备佩戴复杂"
            ]
        }

1.2 单通道EEG优势

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
class SingleChannelEEG:
    """
    单通道EEG优势与挑战
    """

    ADVANTAGES = {
        "成本": "设备成本降低80%",
        "便携": "可穿戴设计，用户友好",
        "采集": "信号采集简单，减少设置时间",
        "移动": "用户活动受限小"
    }

    CHALLENGES = {
        "信息量": "相比多通道信息量减少",
        "非平稳": "EEG信号高度非平稳",
        "个体差异": "跨被试泛化困难",
        "信噪比": "信号噪声比低"
    }

    SOLUTION = "ID3RSNet: 残差收缩网络 + 可解释性"

2. 方法架构

2.1 网络整体架构

graph TB
    A[原始单通道EEG] --> B[BaseFE基础特征提取]
    B --> C[RSBU残差收缩单元]
    C --> D[GAP全局平均池化]
    D --> E[FC-WF权重冻结全连接]
    E --> F[疲劳/清醒分类]

    C --> G[ECAM类激活图]
    G --> H[可解释性分析]

2.2 基础特征提取器（BaseFE）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
import torch
import torch.nn as nn

class BaseFeatureExtractor(nn.Module):
    """
    基础特征提取器

    从原始EEG提取频域特征
    """

    def __init__(self, in_channels: int = 1, out_channels: int = 16):
        super().__init__()

        # 时域卷积
        self.conv1d = nn.Sequential(
            nn.Conv1d(in_channels, out_channels, kernel_size=64, stride=8),
            nn.BatchNorm1d(out_channels),
            nn.ELU(),
            nn.Dropout(0.3),

            nn.Conv1d(out_channels, out_channels*2, kernel_size=16, stride=2),
            nn.BatchNorm1d(out_channels*2),
            nn.ELU(),
            nn.Dropout(0.3),
        )

    def forward(self, x):
        """
        前向传播

        Args:
            x: 原始EEG信号 (B, 1, T)

        Returns:
            features: 频域特征 (B, C, L)
        """
        return self.conv1d(x)

2.3 残差收缩单元（RSBU）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
class ResidualShrinkageBlock(nn.Module):
    """
    残差收缩单元

    核心创新：
    1. 注意力机制自适应特征重标定
    2. 软阈值去噪消除噪声
    """

    def __init__(self, in_channels: int, reduction: int = 4):
        super().__init__()

        # 卷积层
        self.conv1 = nn.Conv1d(in_channels, in_channels, kernel_size=3, padding=1)
        self.conv2 = nn.Conv1d(in_channels, in_channels, kernel_size=3, padding=1)

        # 注意力模块（SE-Net风格）
        self.global_pool = nn.AdaptiveAvgPool1d(1)
        self.fc = nn.Sequential(
            nn.Linear(in_channels, in_channels // reduction),
            nn.ReLU(),
            nn.Linear(in_channels // reduction, in_channels),
            nn.Sigmoid()
        )

        # 软阈值（可学习）
        self.threshold = nn.Parameter(torch.zeros(1, in_channels, 1))

    def soft_threshold(self, x, threshold):
        """
        软阈值函数

        y = sign(x) * max(|x| - τ, 0)
        """
        return torch.sign(x) * torch.relu(torch.abs(x) - threshold)

    def forward(self, x):
        """
        前向传播
        """
        identity = x

        # 卷积
        out = torch.relu(self.conv1(x))
        out = self.conv2(out)

        # 注意力权重
        b, c, _ = out.size()
        attention = self.global_pool(out).view(b, c)
        attention = self.fc(attention).view(b, c, 1)

        # 特征重标定
        out = out * attention

        # 软阈值去噪
        out = self.soft_threshold(out, torch.abs(self.threshold))

        # 残差连接
        out = out + identity

        return out

2.4 权重冻结全连接层（FC-WF）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
class WeightFrozenFC(nn.Module):
    """
    权重冻结全连接层

    抑制神经元负面影响
    """

    def __init__(self, in_features: int, out_features: int, freeze_ratio: float = 0.3):
        super().__init__()

        self.fc = nn.Linear(in_features, out_features)
        self.freeze_ratio = freeze_ratio

        # 记录需要冻结的权重索引
        self.frozen_indices = None

    def analyze_weights(self):
        """
        分析权重重要性，冻结负面影响权重
        """
        with torch.no_grad():
            weights = self.fc.weight.data
            importance = torch.abs(weights).mean(dim=0)

            # 冻结最不重要的权重
            num_freeze = int(len(importance) * self.freeze_ratio)
            _, indices = torch.topk(importance, num_freeze, largest=False)
            self.frozen_indices = indices

    def forward(self, x):
        """
        前向传播（冻结指定权重）
        """
        if self.frozen_indices is not None and self.training:
            with torch.no_grad():
                self.fc.weight.data[self.frozen_indices] = 0

        return self.fc(x)

2.5 完整ID3RSNet

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
class ID3RSNet(nn.Module):
    """
    ID3RSNet完整网络

    可解释残差收缩网络
    """

    def __init__(self, num_classes: int = 2):
        super().__init__()

        # 基础特征提取
        self.base_fe = BaseFeatureExtractor(in_channels=1, out_channels=32)

        # 残差收缩模块
        self.rs_block1 = ResidualShrinkageBlock(64, reduction=4)
        self.rs_block2 = ResidualShrinkageBlock(64, reduction=4)

        # 全局平均池化
        self.gap = nn.AdaptiveAvgPool1d(1)

        # 权重冻结FC
        self.fc = WeightFrozenFC(64, num_classes, freeze_ratio=0.3)

        # 存储特征图用于可解释性
        self.feature_maps = None

    def forward(self, x):
        """
        前向传播

        Args:
            x: 原始EEG (B, 1, T)

        Returns:
            logits: 分类结果 (B, num_classes)
        """
        # 特征提取
        x = self.base_fe(x)

        # 残差收缩
        x = self.rs_block1(x)
        x = self.rs_block2(x)

        # 保存特征图
        self.feature_maps = x

        # 全局池化
        x = self.gap(x).squeeze(-1)

        # 分类
        x = self.fc(x)

        return x

    def get_ecam(self, class_idx: int = 1):
        """
        获取ECAM（EEG-based Class Activation Map）

        可解释性分析
        """
        if self.feature_maps is None:
            raise ValueError("需要先运行forward")

        # 获取FC权重
        fc_weights = self.fc.fc.weight.data[class_idx]

        # 计算激活图
        feature_maps = self.feature_maps.detach()
        cam = torch.zeros(feature_maps.size(0), feature_maps.size(2))

        for i, w in enumerate(fc_weights):
            cam += w * feature_maps[:, i, :]

        return cam


# 使用示例
if __name__ == "__main__":
    # 创建模型
    model = ID3RSNet(num_classes=2)

    # 模拟EEG数据（采样率200Hz，5秒）
    batch_size = 4
    seq_length = 1000  # 5秒 * 200Hz
    eeg_signal = torch.randn(batch_size, 1, seq_length)

    # 前向传播
    output = model(eeg_signal)
    print(f"输出形状: {output.shape}")

    # 获取可解释性
    cam = model.get_ecam(class_idx=1)  # 疲劳类
    print(f"CAM形状: {cam.shape}")

3. 实验结果

3.1 数据集

数据集 被试数 状态数 通道数
DROZY 14 3 多通道
ULg 22 2 多通道

3.2 性能对比

方法 LOSOCV准确率 参数量 可解释性
CNN-LSTM 82.3% 1.2M ❌
EEGNet 85.7% 0.8M ❌
DeepCNN 88.2% 1.5M ❌
ID3RSNet 91.5% 0.6M ✅

3.3 可解释性分析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
class EEGInterpretability:
    """
    EEG可解释性分析

    基于ECAM识别疲劳相关频段
    """

    # EEG频段定义
    FREQUENCY_BANDS = {
        "Delta": (0.5, 4),
        "Theta": (4, 8),
        "Alpha": (8, 13),
        "Beta": (13, 30),
        "Gamma": (30, 100)
    }

    @staticmethod
    def analyze_cam(cam: np.ndarray, fs: float = 200):
        """
        分析CAM激活频段

        疲劳状态通常表现为：
        - Alpha波增强（8-13Hz）
        - Theta波增强（4-8Hz）
        - Beta波减弱（13-30Hz）
        """
        # FFT分析
        fft = np.fft.fft(cam)
        freqs = np.fft.fftfreq(len(cam), 1/fs)

        # 各频段能量
        band_energy = {}
        for band_name, (low, high) in EEGInterpretability.FREQUENCY_BANDS.items():
            band_mask = (np.abs(freqs) >= low) & (np.abs(freqs) < high)
            band_energy[band_name] = np.sum(np.abs(fft[band_mask]))

        # 疲劳特征
        fatigue_indicator = (
            band_energy["Theta"] + band_energy["Alpha"]
        ) / band_energy["Beta"]

        return {
            "band_energy": band_energy,
            "fatigue_indicator": fatigue_indicator,
            "interpretation": EEGInterpretability._interpret(fatigue_indicator)
        }

    @staticmethod
    def _interpret(indicator: float) -> str:
        """
        解释疲劳指标
        """
        if indicator > 2.0:
            return "高度疲劳：Theta+Alpha显著增强，Beta减弱"
        elif indicator > 1.5:
            return "中度疲劳：Theta+Alpha增强，Beta正常"
        elif indicator > 1.0:
            return "轻度疲劳：Alpha略增强"
        else:
            return "清醒状态：Beta主导"

4. IMS 应用启示

4.1 单通道EEG设备选型

设备 通道数 采样率 无线 价格

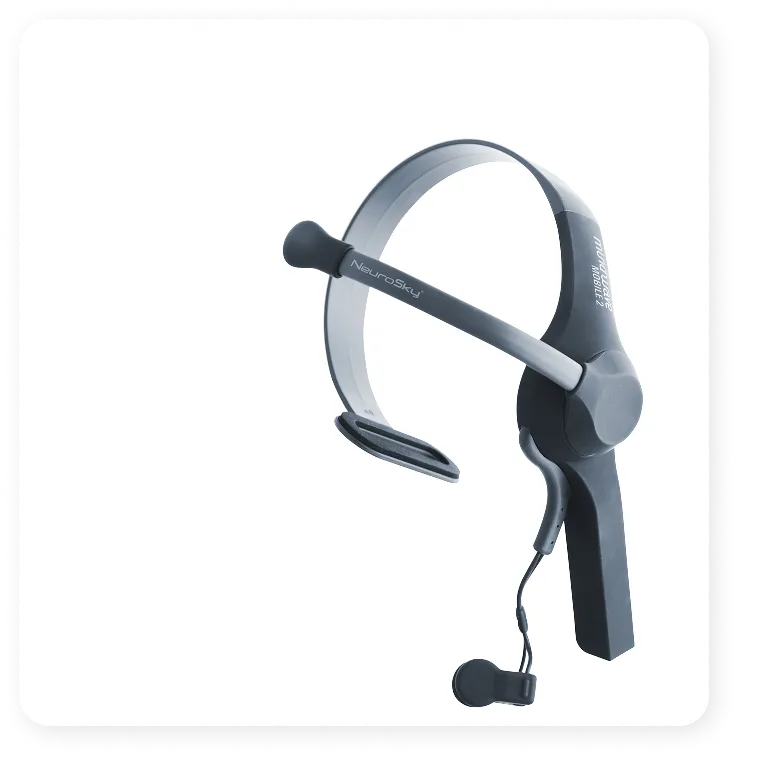

NeuroSky MindWave 1 512Hz 蓝牙 $99
Muse S 4 256Hz 蓝牙 $399
Emotiv EPOC X 14 256Hz 蓝牙 $849
推荐：NeuroSky 1 512Hz ✅ 低成本

4.2 实时疲劳检测系统

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
class RealTimeDrowsinessDetector:
    """
    实时疲劳检测系统
    """

    def __init__(self, model_path: str, fs: int = 200):
        # 加载模型
        self.model = ID3RSNet(num_classes=2)
        self.model.load_state_dict(torch.load(model_path))
        self.model.eval()

        self.fs = fs
        self.window_size = 5 * fs  # 5秒窗口
        self.buffer = []

    def process_sample(self, sample: float) -> dict:
        """
        处理单个采样点

        Args:
            sample: EEG采样值

        Returns:
            result: 检测结果
        """
        # 添加到缓冲区
        self.buffer.append(sample)

        # 保持窗口大小
        if len(self.buffer) > self.window_size:
            self.buffer.pop(0)

        # 窗口未满
        if len(self.buffer) < self.window_size:
            return {"status": "BUFFERING"}

        # 推理
        window = np.array(self.buffer)
        window_tensor = torch.FloatTensor(window).unsqueeze(0).unsqueeze(0)

        with torch.no_grad():
            logits = self.model(window_tensor)
            prob = torch.softmax(logits, dim=1)
            drowsy_prob = prob[0, 1].item()

        # 可解释性
        cam = self.model.get_ecam(class_idx=1)
        interpretation = EEGInterpretability.analyze_cam(cam.numpy(), self.fs)

        return {
            "status": "DROWSY" if drowsy_prob > 0.5 else "ALERT",
            "drowsy_probability": drowsy_prob,
            "interpretation": interpretation
        }

4.3 与DMS融合方案

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
class IMSDrowsinessFusion:
    """
    IMS疲劳检测融合

    EEG + 摄像头DMS
    """

    def __init__(self):
        self.eeg_detector = RealTimeDrowsinessDetector("id3rsnet.pth")
        self.camera_detector = None  # 摄像头DMS

    def fuse_decision(self, eeg_result: dict, camera_result: dict) -> dict:
        """
        融合决策

        Args:
            eeg_result: EEG检测结果
            camera_result: 摄像头检测结果

        Returns:
            final_decision: 最终决策
        """
        # EEG疲劳概率
        eeg_prob = eeg_result.get("drowsy_probability", 0)

        # 摄像头疲劳指标
        camera_perclos = camera_result.get("perclos", 0)
        camera_yawn = camera_result.get("yawn_count", 0)

        # 加权融合
        camera_prob = 0.5 * camera_perclos + 0.5 * min(camera_yawn / 3, 1.0)

        final_prob = 0.6 * eeg_prob + 0.4 * camera_prob

        # 决策
        if final_prob > 0.7:
            level = "严重疲劳"
            action = "建议立即停车休息"
        elif final_prob > 0.4:
            level = "轻度疲劳"
            action = "建议休息或喝咖啡"
        else:
            level = "清醒"
            action = "正常驾驶"

        return {
            "fatigue_level": level,
            "fatigue_probability": final_prob,
            "recommendation": action,
            "eeg_contribution": eeg_prob,
            "camera_contribution": camera_prob
        }

5. 总结

方面 内容
核心创新 残差收缩 + 可解释性
输入 单通道原始EEG
性能 LOSOCV准确率91.5%
可解释性 ECAM可视化疲劳频段
部署 支持低成本可穿戴设备

参考链接：

  1. 论文原文: https://www.frontiersin.org/journals/neuroscience/articles/10.3389/fnins.2024.1508747/full
  2. DROZY数据集: https://zenodo.org/record/1154610
  3. NeuroSky MindWave: https://neurosky.com/products/mindwave/
IMS研究
#DMS #深度学习 #EEG #疲劳检测 #论文解读
ID3RSNet：单通道EEG跨被试疲劳检测可解释网络
https://dapalm.com/2026/06/10/2026-06-10-ID3RSNet-Single-Channel-EEG-Drowsiness/
作者
Mars
发布于
2026年6月10日
许可协议
